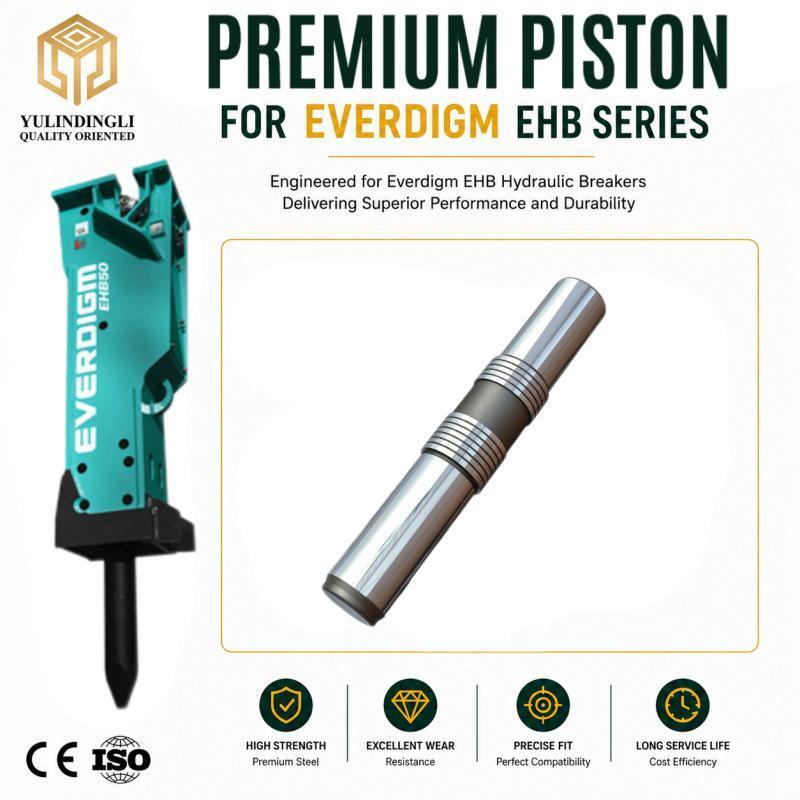

Everdigm EHB Series Impact Piston For Hammer Rebuild And Energy Transfer Service

Product Introduction

The Everdigm EHB Series Impact Piston For Hammer Rebuild And Energy Transfer Service is a core internal spare part used in excavator-mounted hydraulic breaker hammers. It is suitable for Everdigm EHB Series hydraulic breakers, including common models such as EHB02, EHB04, EHB05, EHB13, EHB17, EHB20, EHB25, EHB30, EHB40, and EHB50.

The piston is the main impact component inside a hydraulic breaker. During operation, hydraulic oil pushes the piston to move rapidly inside the cylinder. The piston then strikes the breaker chisel and transfers impact energy to concrete, rock, asphalt, foundation material, and other hard surfaces. Because of this, the piston directly affects hammer power, impact stability, working frequency, and repair cost.

If the piston is scratched, worn, cracked, deformed, or incorrectly matched with the cylinder and chisel, the hydraulic breaker may show weak impact, unstable operation, oil leakage, abnormal noise, high temperature, seal kit damage, cylinder wear, or complete hammer failure. For repair workshops, spare parts distributors, construction contractors, rental fleets, quarry operators, and maintenance teams, choosing the correct Everdigm EHB Series piston is essential for reliable breaker rebuild and long-term service.

This product is an aftermarket replacement piston compatible with Everdigm EHB Series hydraulic breakers. The Everdigm name and EHB model references are used only for compatibility identification.

Material

Our Everdigm EHB Series hydraulic breaker pistons can be produced from selected alloy steel according to model size, working condition, and customer requirements. Common material options include 40Cr, 42CrMo, 40CrMnMo, and 40CrNiMo.

40Cr is suitable for general repair applications where stable performance and cost control are both important.
42CrMo offers better impact resistance, toughness, and fatigue strength, making it suitable for frequent breaker operation.
40CrMnMo provides good hardenability and strength for heavier working conditions.
40CrNiMo is suitable for demanding applications that require stronger toughness, fatigue resistance, and long-hour impact performance.

The material selection can be adjusted according to breaker model, operating environment, budget, and expected service life.

Product Features

The Everdigm EHB Series piston is designed for accurate movement inside the hydraulic breaker cylinder. It requires strict dimensional control, smooth surface finishing, stable hardness, and reliable impact strength. A small machining error may affect hydraulic pressure, seal life, and impact performance.

The production process usually includes CNC machining, heat treatment, grinding, polishing, and surface finishing. Proper heat treatment helps the piston resist repeated striking force, while precision grinding and polishing help reduce friction between the piston and cylinder. A smooth piston surface is also important for protecting the seal kit and reducing oil leakage risk.

The piston works together with the cylinder, chisel, seal kit, front head, back head, diaphragm, accumulator, and bushings. When these parts are correctly matched, the breaker can deliver stable impact power during concrete breaking, road repair, foundation demolition, quarry work, trenching, and general construction jobs.

Main Advantages

The main advantage of this Everdigm EHB Series impact piston is stable energy transfer. A well-machined piston helps the hydraulic hammer convert oil pressure into strong impact force more efficiently. This can improve breaker performance and reduce unnecessary power loss.

For repair workshops, a reliable piston can improve rebuild quality and reduce repeated repair problems. For distributors, pistons are important replacement parts with regular demand. For contractors and rental companies, replacing a damaged piston in time can help prevent further damage to the cylinder, seal kit, chisel, bushings, and front head.

A damaged piston should not be ignored. If the piston continues working with scratches or deformation, it may damage the cylinder bore and sealing surface. This can turn a normal repair into a more expensive rebuild. Timely piston replacement is an effective way to protect the hydraulic breaker assembly.

Why Choose Us

Customers choose us because we focus on hydraulic breaker aftermarket spare parts and model matching support. We supply pistons, chisels, seal kits, inner bushes, outer bushes, diaphragms, rod pins, through bolts, side bolts, front heads, back heads, cylinders, buffers, wear plates, and other hydraulic breaker repair parts.

For Everdigm EHB Series pistons, we can help customers confirm the correct model before production or shipment. If the customer is not sure about the piston specification, they can provide the breaker model, old piston dimensions, photos, drawings, samples, part numbers, or nameplate information. We can help check the matching details to reduce wrong orders.

Customization is available for material, size, hardness, surface treatment, marking, packaging, labels, and export packing. Whether you are a hydraulic breaker repair workshop, machinery parts dealer, construction contractor, rental fleet, quarry operator, or maintenance supplier, we can provide flexible support for single replacement orders and stock orders.

Applications

The Everdigm EHB Series Piston is widely used in:

• Hydraulic breaker rebuild and repair

• Excavator hammer impact system service

• Concrete demolition equipment maintenance

• Road repair and asphalt breaking hammer service

• Quarry and stone breaking hammer repair

• Trenching and foundation work breaker maintenance

• Hydraulic breaker spare parts stock

• Repair workshop replacement projects

Parameter Table

FAQ

Q1: Is this piston an original Everdigm part?
No. This is an aftermarket replacement piston compatible with Everdigm EHB Series hydraulic breakers. The Everdigm name and EHB model references are used only for compatibility identification.

Q2: Which Everdigm EHB models are covered?
Common models include EHB02, EHB04, EHB05, EHB13, EHB17, EHB20, EHB25, EHB30, EHB40, and EHB50.

Q3: What materials are available for the piston?
Common material options include 40Cr, 42CrMo, 40CrMnMo, and 40CrNiMo. Material can be selected according to working condition and customer requirements.

Q4: What happens if the piston is damaged?
A damaged piston may cause weak impact, unstable frequency, oil leakage, seal kit failure, cylinder wear, chisel damage, abnormal heat, or complete breaker failure.

Q5: How can I confirm the correct piston model?
You can provide the breaker model, old piston dimensions, photos, drawings, samples, part numbers, or nameplate information. We can help confirm before shipment.

Q6: Can I order pistons with other hydraulic breaker parts?
Yes. Pistons can be supplied together with chisels, seal kits, bushings, diaphragms, rod pins, bolts, cylinders, front heads, back heads, buffers, and wear plates.
