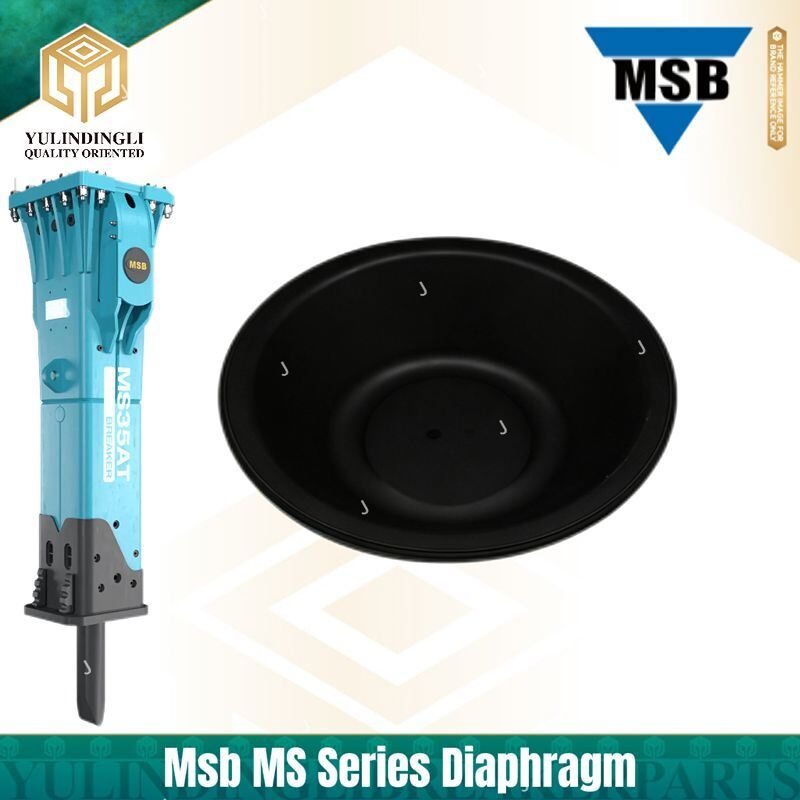

The MSB MS Series Hydraulic Breaker Diaphragm is a critical rubber component designed for the MSB MS Series hydraulic breakers. Also known as a nitrogen chamber membrane, accumulator diaphragm, or rubber cup, the diaphragm plays an important role in maintaining nitrogen gas pressure, absorbing vibration, and ensuring stable impact performance during hydraulic breaker operation.

The diaphragm works inside the nitrogen chamber and is exposed to repeated pressure changes, vibration, and mechanical stress. A high-performance diaphragm helps maintain nitrogen sealing, reduce pressure loss, and improve the energy efficiency of the hydraulic breaker.

Our MSB MS Series Hydraulic Breaker Diaphragm is manufactured from high-elasticity rubber materials with excellent flexibility, wear resistance, impact absorption, and fatigue durability. The optimized rubber formulation provides stable deformation recovery and long service life under high-frequency working conditions.

Produced according to OEM-compatible specifications, our replacement diaphragms provide a reliable solution for hydraulic breaker maintenance, repair, and rebuilding. They are widely used by hydraulic breaker distributors, repair workshops, contractors, and equipment owners worldwide.

Product Features

High Elastic Rubber Material

The MSB MS Series Diaphragm is manufactured from specially selected high-performance rubber compounds, providing:

• Excellent elasticity
• Strong vibration absorption
• Good wear resistance
• High fatigue resistance
• Long service life

Suitable for continuous hydraulic breaker operation.

Nitrogen Chamber Pressure Stability

The diaphragm helps maintain:

• Stable nitrogen pressure
• Efficient energy storage
• Smooth impact performance
• Reduced pressure loss

Improving overall breaker working efficiency.

Shock Absorption and Vibration Resistance

The flexible rubber structure helps:

• Absorb pressure fluctuations
• Reduce impact vibration
• Protect internal components
• Improve operational stability

Wear and Fatigue Resistance

Designed to withstand:

• Repeated compression cycles
• High-frequency vibration
• Temperature changes
• Long-term mechanical stress

Ensuring reliable performance in harsh environments.

OEM-Compatible Replacement

Manufactured according to MSB MS Series hydraulic breaker specifications for:

• Accurate installation
• Reliable sealing
• Stable nitrogen chamber performance
• Reduced maintenance downtime

Product Function

Nitrogen Gas Sealing

The diaphragm separates nitrogen gas from hydraulic components and maintains chamber pressure.

Energy Storage Support

It helps store and release nitrogen energy to improve hydraulic breaker impact efficiency.

Vibration Protection

The elastic rubber material absorbs vibration and reduces stress on internal components.

Applications

MSB MS Series Hydraulic Breaker Diaphragms are widely used in:

Construction Industry

• Concrete demolition
• Building renovation
• Foundation breaking
• Road construction

Mining and Quarrying

• Rock breaking
• Quarry operations
• Heavy equipment maintenance

Hydraulic Breaker Repair

• Nitrogen chamber maintenance
• Rubber component replacement
• Hydraulic hammer rebuilding

Suitable for MSB MS Series hydraulic breakers.

Why Choose Our MSB MS Series Diaphragm?

Professional Hydraulic Breaker Parts Manufacturer

Since 2008, we have specialized in hydraulic breaker spare parts manufacturing and provide aftermarket solutions worldwide.

Compatible brands include:

• MSB
• Rammer
• Atlas Copco
• Epiroc
• Montabert
• JCB
• Indeco
• Daemo
• Everdigm
• NPK

Advanced Rubber Manufacturing Technology

Our diaphragm production includes:

1. Premium rubber material selection
2. Precision molding
3. Vulcanization treatment
4. Elasticity testing
5. Dimensional inspection

Ensuring stable quality and long-term durability.

Strict Quality Control

Each diaphragm is inspected for:

• Rubber hardness
• Elastic recovery
• Surface quality
• Dimensional accuracy
• Sealing performance

Complete Hydraulic Breaker Spare Parts Supply

Besides diaphragms, we also provide:

• Pistons
• Cylinders
• Front Heads
• Back Heads
• Chisels
• Bushings
• Seal Kits
• Rod Pins
• Tool Retainers
• Through Bolts
• Side Bolts
• Buffers
• Wear Plates

Providing complete hydraulic breaker maintenance solutions.

Technical Specifications

Frequently Asked Questions

Q1: What is the function of a hydraulic breaker diaphragm?

The diaphragm maintains nitrogen chamber pressure, supports energy storage, and helps improve hydraulic breaker impact performance.

Q2: What material is used for MSB MS Series diaphragm?

It is manufactured from high-elasticity rubber materials with excellent wear resistance and vibration absorption performance.

Q3: Why is diaphragm quality important?

A damaged diaphragm may cause nitrogen leakage, reduced impact force, unstable operation, and decreased breaker efficiency.

Q4: When should a hydraulic breaker diaphragm be replaced?

Replacement is recommended when the diaphragm has cracks, deformation, aging, air leakage, or reduced elasticity.

Q5: Do you supply other MSB MS Series spare parts?

Yes. We supply complete MSB MS Series hydraulic breaker parts, including pistons, cylinders, bushings, chisels, seal kits, bolts, and other wear components.
