MSB MS Series Hydraulic Breaker Front Head / Back Head for Chisel Support and Tool Guidance

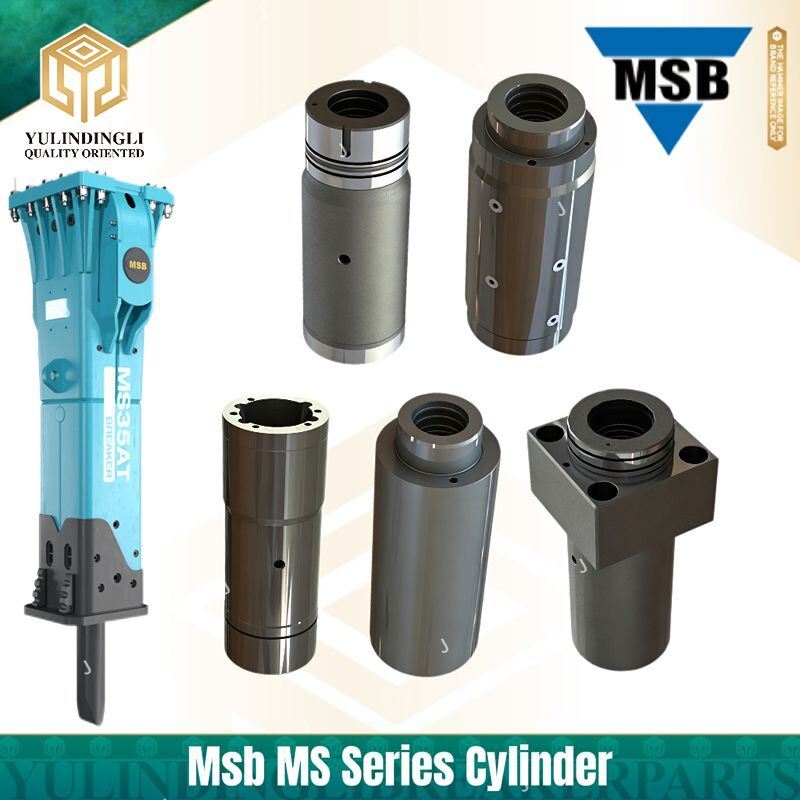

The MSB MS Series Hydraulic Breaker Cylinder is a core structural and hydraulic component designed for MSB MS Series hydraulic breakers. Also known as the middle cylinder, it is the main working chamber where the piston moves under hydraulic pressure to generate impact energy.

The cylinder plays a critical role in hydraulic breaker operation by guiding piston movement, maintaining hydraulic pressure, and ensuring efficient energy conversion. During continuous breaking operations, the cylinder is exposed to high hydraulic pressure, repeated impact forces, and friction between the piston and inner surface. Therefore, cylinder material strength, machining accuracy, and surface treatment directly affect breaker performance and service life.

Our MSB MS Series Hydraulic Breaker Cylinder is manufactured from high-strength alloy steel with precision machining and professional heat treatment. The inner surface is processed with strict dimensional control to ensure smooth piston movement, proper sealing performance, and stable impact output.

Produced according to OEM-compatible specifications, our replacement cylinders provide a reliable solution for hydraulic breaker repair, rebuilding, and maintenance. They are widely used by distributors, repair workshops, contractors, and equipment owners worldwide.

Product Features

High-Strength Alloy Steel Construction

The MSB MS Series Cylinder is manufactured from durable alloy steel, providing:

• Excellent structural strength
• High pressure resistance
• Strong impact durability
• Good fatigue performance
• Long service life

Suitable for demanding hydraulic breaker applications.

Precision Inner Surface Machining

The cylinder requires high machining accuracy to ensure:

• Smooth piston movement
• Correct piston clearance
• Stable hydraulic pressure
• Reduced internal friction

Improving overall breaker efficiency.

Professional Heat Treatment

Advanced heat treatment improves:

• Surface hardness
• Wear resistance
• Crack resistance
• Structural durability

Allowing the cylinder to withstand repeated impact cycles.

Stable Hydraulic Performance

The cylinder works together with:

• Piston
• Seal Kit
• Front Head
• Back Head

to maintain:

• Efficient hydraulic energy conversion
• Stable impact frequency
• Reliable working performance

OEM-Compatible Replacement

Manufactured according to MSB MS Series hydraulic breaker specifications for:

• Accurate installation
• Reliable operation
• Easy replacement
• Reduced maintenance downtime

Product Function

Piston Movement Guidance

The cylinder provides the precision working chamber for piston reciprocating movement.

Hydraulic Pressure Control

It maintains internal hydraulic pressure required for impact generation.

Impact Energy Conversion

Together with the piston, the cylinder converts hydraulic energy into mechanical impact force.

Applications

MSB MS Series Hydraulic Breaker Cylinders are widely used in:

Construction Industry

• Concrete demolition
• Building renovation
• Foundation breaking
• Road construction

Mining and Quarrying

• Rock excavation
• Quarry operations
• Stone breaking
• Heavy equipment maintenance

Hydraulic Breaker Repair

• Hydraulic hammer rebuilding
• Cylinder replacement
• Internal component maintenance

Suitable for MSB MS Series hydraulic breakers.

Why Choose Our MSB MS Series Cylinder?

Professional Hydraulic Breaker Parts Manufacturer

Since 2008, we have specialized in hydraulic breaker spare parts manufacturing and provide aftermarket replacement solutions worldwide.

Compatible brands include:

• MSB
• Rammer
• Atlas Copco
• Epiroc
• Montabert
• JCB
• Indeco
• Daemo
• Everdigm
• NPK

Reliable Manufacturing Process

Our cylinder production includes:

1. High-strength material selection
2. Precision CNC machining
3. Heat treatment
4. Inner surface finishing
5. Dimensional inspection

Ensuring stable quality and long-term performance.

Strict Quality Control

Each cylinder is inspected for:

• Material composition
• Inner diameter accuracy
• Surface hardness
• Machining tolerance
• Assembly compatibility

Complete Hydraulic Breaker Spare Parts Supply

Besides cylinders, we also provide:

• Pistons
• Front Heads
• Back Heads
• Chisels
• Bushings
• Seal Kits
• Diaphragms
• Rod Pins
• Tool Retainers
• Through Bolts
• Side Bolts
• Buffers
• Wear Plates

Providing complete hydraulic breaker maintenance solutions.

Technical Specifications

Frequently Asked Questions

Q1: What is the function of a hydraulic breaker cylinder?

The cylinder provides the working chamber for the piston and controls hydraulic pressure to generate impact force.

Q2: Why is cylinder machining accuracy important?

The piston moves at high speed inside the cylinder. Accurate machining ensures proper clearance, reduces friction, and maintains stable performance.

Q3: When should an MSB MS Series cylinder be replaced?

Replacement is recommended when the cylinder has internal wear, scratches, cracks, hydraulic leakage, or reduced impact performance.

Q4: Are your MSB MS Series cylinders compatible with original breakers?

Yes. Our cylinders are manufactured according to OEM-compatible specifications for replacement applications.

Q5: Do you supply other MSB MS Series spare parts?

Yes. We supply complete MSB MS Series hydraulic breaker parts, including pistons, front heads, bushings, chisels, seal kits, bolts, and wear components.
