Hydraulic Atlas Copco Jack Hammer Parts Bushing Thrust Ring 42CrMo
Hydraulic Atlas Copco Jack Hammer Parts Bushing Thrust Ring 42CrMo
atlas copco jack hammer parts Thrust Ring
42CrMo atlas copco jack hammer parts
42CrMo hydraulic breaker bushing
Place of Origin:
China
Brand Name:
YULINDINGLI
Certification:
ISO9001 & CE Certified
Model Number:
Hb2000，Hb2200，Hb2500，Hb3000，Hb3100，Hb3600，Hb4100，Hb4200，Hb4700，Hb5800，Hb7000，Hb10000
CONTACT US
Request A Quote
Product Details
Product Name:
Hydraulic Breaker Bushing
Applicable Brands:
Atlas Copco
Fit Models:
HB Series
Material:
40Cr , 42CrMo , 20CrMo , GCr15 , 40CrNiMo , 9Cr2Mov , SCM440 , SAE4140 , SAE4340 , Customizable
Size:
Based On Original Drawings, Customization Available
Highlight:
atlas copco jack hammer parts Thrust Ring
,42CrMo atlas copco jack hammer parts
,42CrMo hydraulic breaker bushing
Payment & Shipping Terms
Minimum Order Quantity
1-10
Price
88-888
Delivery Time
15-30 days
RELATED PRODUCTS
CONTACT US
+86-(0)-519 8867 6089
Contact Now
Product Description

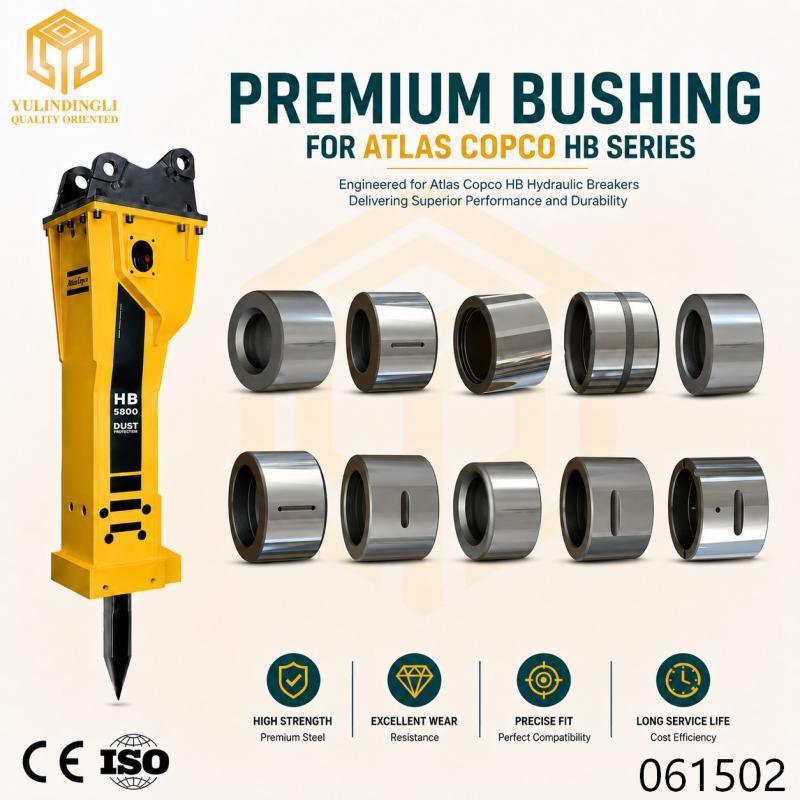

Atlas Copco HB Series Series Bushing / Inner Bush / Outer Bush / Thrust Ring
Our Atlas Copco HB Series hydraulic breaker bushings (including Inner Bush, Outer Bush, and Thrust Ring) are critical wear parts engineered for HB2200, HB2500, HB3000, HB3100, HB3600, HB4100 and other HB-series rock hammers. Manufactured from high-grade 42CrMo/20CrMnTi alloy steel with precision heat treatment, these components deliver exceptional wear resistance, impact toughness and structural stability under extreme demolition and excavation conditions.
The Inner Bush provides precise radial guidance for the chisel and piston, reducing friction and preventing seizing; the Outer Bush reinforces the front head assembly, absorbing lateral loads and protecting the main housing. The Thrust Ring (impact ring) bears axial impact forces, maintaining optimal clearance between moving parts and transmitting energy efficiently. All parts are CNC-machined to strict OEM tolerances for perfect compatibility, easy installation and reliable performance, minimizing downtime and extending breaker service life. Ideal for heavy-duty applications in mining, construction, quarrying and roadwork, our HB-series bushings are available as 100% new aftermarket replacements with a 3–6 month warranty.
| Part Name | Atlas Copco HB series Bushing |
| Fit Models | Hb2000,Hb2200,Hb2500,Hb3000,Hb3100,Hb3600,Hb4100,Hb4200,Hb4700,Hb5800,Hb7000,Hb10000 |
| For |
Epiroc Atlas Copco Hydraulic Breaker Hydraulic Hammer |
| Material | 40Cr , 42CrMo , 20CrMo , GCr15 , 40CrNiMo , 9Cr2Mov , SCM440 , SAE4140 , SAE4340 , Customizable |
| Certification | ISO9001 , CE Certified |
| Packaging Details | Packed by standard export wooden box |
| Delivery Time | 15-30 days upon payments confirmed |
| Brand | YULINDINGLI , ATLAS COPCO , etc or as required |
| Payment Terms | PayPal , Western Union , Money Gram , T'T in advance , L/c at sight , Alipay etc |
Hydraulic Breaker Hammer Chisel of Shipping photos
Hydraulic Breaker Hammer Chisel of factory photos
Workers Inspecting Hydraulic Breaker Chisels
Heat Treatment Process of Hydraulic Breaker Chisels
We also provide other brands of hydraulic breaker spare parts
